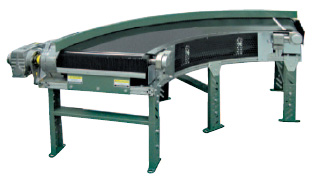

Model TS-1500-140 Powered Belt Curve Conveyor
View Catalog Sheet  Print
This Page
The Model TS1500-140 provides a positive flow of products by means of a belt, driven by
tapered pulleys. Conveyor
is versatile in that it can transport a wide variety of products. Available in 45°,
60°, 90°, and 180° turns.
Model TS-1500-140
- Bed-8-3/8" x 12/14 Ga. steel all-welded slider bed spray
painted.
- Conveying Surface Widths: 21", 23", 25", 27", 29", 31",
33", 35", 37", 39", 41", 43", 45",
47", & 49"
- Models available in 45/60/90/180 degree turns
- Motor-3/4 HP standard- 5 HP maximum.
- Capacity-Maximum load per linear ft. of conveyor; 40 lbs.
(Measured
at centerline); not to exceed rated capacities. (Refer to chart
in catalogue sheets attached)
- Belt-Continuous (Not laced).
- End driven which is not reversible.
|
|
|
|
|
