| Model ABEZ -
Horizontal Belt Conveyor |
 |

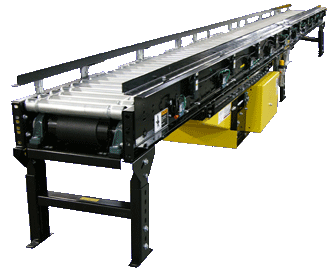

Conveyor
Shown with Optional Supports
|
Hytrol’s Model ABEZ
is a zero pressure live roller accumulation conveyor. The many features
provided by its’ patented EZLogic® accumulation system
makes it the most versatile conveyor of its type. The conveyor consists
of accumulation zones each of which contains an EZLogic® accumulation
module. The accumulation modules sense product presence to determine
whether the zone should be driving or accumulating. ABEZ conveyor
lines, regardless of length, may be fully accumulated with product
with absolutely zero backpressure at the discharge end or anywhere
along the length of the conveyor. This allows the conveyor to store
or stage product for other operations with no product damage while
minimizing power consumption and equipment wear. Also, with no backpressure,
cartons may be easily removed from any point along its length for
secondary operations. This standard conveyor is also equipped with
photoelectric sensing of product making it reliable and trouble
free when conveying products weighing practically nothing up to
150 lbs per foot.
|
|
| |
FEATURES
• Patented EZLogic® Accumulation System – Flexible
& Reliable operation
• Retroreflective or Diffuse Sensing of Product
• New Trapped Roller Design - Provides quiet operation and reduced
frame wear
• New Integral Tail Design - with Heavy Duty Bearings
• Zero Pressure Accumulation of Product
• Standard Zone Lengths – 12, 18, 24, 30, & 36
• No Minimum Product Weight
• Capacity – up to 150 lbs per foot
• Product Jam Detection
• Sleep Mode – Saves Energy and Equipment Wear when Cartons
are not being Conveyed
• Selectable Singulation Mode, Slug Mode or Any Combination
• Intermediate Zones Stop Available in Every Zone for Maximum
Flexibility
• Lengths – up to 200 feet
• Brake Rollers Located in Every Zone for Good Product Control
• Optional ABEC Roller Bearings Available for High Speed Applications
 APPLICATION
The ABEZ is utilized in a vast array of applications ranging from
manufacturing, assembly lines, packaging, shipping, to high speed
distribution systems. Products that may be conveyed vary from cardboard
boxes to plastic totes to custom assembly pallets of all types.
The ability to simply plug in intermediate zone stops in any zone
makes this conveyor ideal for assembly lines containing operator workstations.
Operators simply have to activate a zone stop contact for the next
available product to stop for assembly, testing or inspection.
Another popular application for this conveyor is conveying products
from packaging equipment to palletizers. The product may be accumulated
and released in almost any fashion to match specific product requirements
or palletizer requirements.
High throughput distribution centers utilize the Model ABEZ in areas
feeding merges, sorters, as well as sortation take-away lines feeding
shipping areas. The flexibility to select different operation modes,
ability to detect product jams, and sleep feature allows this conveyor
to function both efficiently and reliably in many material handling
systems.
CONVEYOR SKETCHES
Conveyor sketches showing width and dimensional information
with the ability to zoom in to see detail can be found on the
Adobe Acrobat PDF file -
Click
Here. |
|
|
